  • Product Details:
    Description:TFT Color 0.96 inch LCD Screen with resolution 80(RGB)*160 / brightness 400 / SPI interface
    Model:PS0096A2-I-4
    Place of Origin:China
    Brand Name:P&S
    Certification:CE,FCC,ROHS
    Model Number:PS-xx
    Minimum Order Quantity:MOQ for customized PCT 1000pcs
    Packaging Details:Standard export package
    Delivery Time:10-20 working days
    Payment Terms:T/T,westen union
    Supply Ability:600-800Kpcs/month
    Contact:Sales&Remarks

    Detailed Product Description

    SPI interface 0.96 inch color TFT LCD IPS Screen with resolution 80(RGB) x 160

    PS0096A1-I is a 80RGBX160 dot-matrix TFT LC D module. This module is composed of a TFT LCD
    Panel, driver ICs, FPC and a Backlight unit.

    1. GENERAL DESCRIPTION


    1  LCD Size :  0.96 inch(Diagonal)  -
    2  Display Mode : Normally black  -
    3  Resolution : 80(H)RGB x 160(V)  -
    4  Dot pitch : 0.135(H) x 0.1356(V) mm  -
    5  Active area : 10.8(H) x 21.7(V) mm  -
    6  Module size : 13.5(H) x 27.95(V) x1.5Max(D) mm  -
    7  Color arrangement : RGB Vtertical stripe  -
    8  Interface : 4 Line SPI -
    9  Drive IC : ST7735S  -
    10  Luminance(cd/m2) : 400 (TYP)
    11  Viewing Direction : All View
    12  Backlight : 1 White LED
    13  Operating Temp. : -20ºC~ + 70ºC
    14  Storage Temp. : -30ºC~+ 80ºC

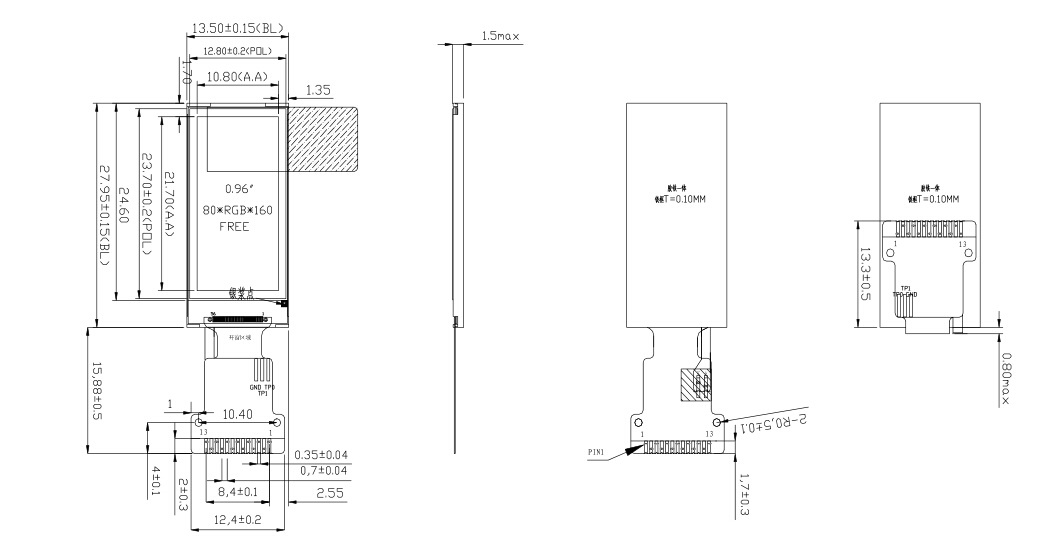

    External Dimension:





    Packaging and Delivery:
    1). Payment Terms: T/T, Paypal
    2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
    3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
    4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
    5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

    FAQ:
    1.Why Choose P&S?
    1.Small MOQ accepted.
    2.Competitive price and short lead-time.
    3.ISO9001 and ROSH certificated factory supplied.
    4.Professional?technicians and QC team test the original products one by one to ensure every products are perfect before package and shipment!
    5.Dedicated and professional sales team provide immediate service
    2.What can we do for you?
    Customize service is available.
    3.What is sthe lead time of products?
    7-10 days for goods in stock, 3-4 weeks for mass production goods.?
    4.Payment methods?
    T/T and Paypal.
    5.How long is the warranty period?
    Usually 1 year without demaged by people action.

    Samples are available for 0.96 inch color TFT LCD module,so if you are interested in it,please feel free to contact with us!!!
