  • Product Details:
    Description:4.6" TFT Screen Custom Bar LCD / Letterbox Display / Monitor Display 24bit RGB 800X320 Dots
    Model:PS046NL01-40ND-12AP
    Place of Origin:China
    Brand Name:P&S
    Certification:CE,FCC,ROHS
    Model Number:PS-xx
    Minimum Order Quantity:MOQ for customized PCT 1000pcs
    Packaging Details:Standard export package
    Delivery Time:10-20 working days
    Payment Terms:T/T,westen union
    Supply Ability:600-800Kpcs/month
    Contact:Sales&Remarks

    Detailed Product Description

    4.6" TFT Screen Custom Bar LCD / Letterbox Display / Monitor Display 24bit RGB 800X320 Dots




    1. General Specifications

    No.
    Item
    Specification
    1 LCD size
    4.6 inch
    2 Driver element
    a-Si TFT active matrix
    3 Resolution
    800(W) RGB x 320(H)
    4 Display mode
    Normally White, Transmissive
    5 Dot pitch
    0.135(W) x 0.135(H)
    6 Active area
    108(W) x 43.2(H) mm
    7 Module size
    119.0(W) × 56.54(H) × 4.3(D) mm
    8 View direction
    12 O ‘clock
    9 Surface treatment
    Anti-Glare
    10 Color arrangement
    RGB-stripe
    11 Interface
    RGB
    12 Lcm power consumption
    0.9w  TYP
    13

     Drive IC

    ILI6122+ILI5960

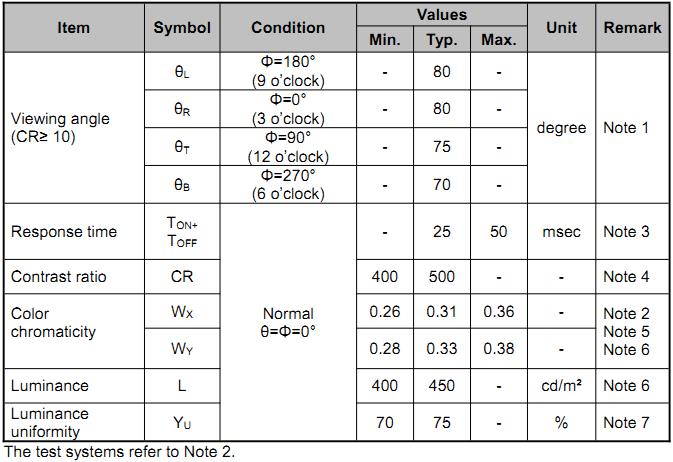

    2. Optical Specifications

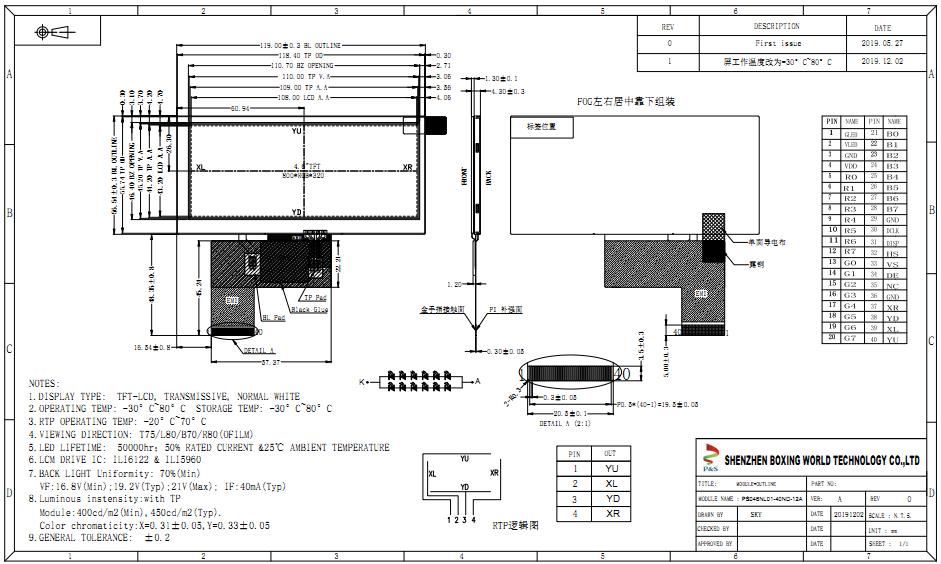

    3.Product Drawing
