  • Product Details:

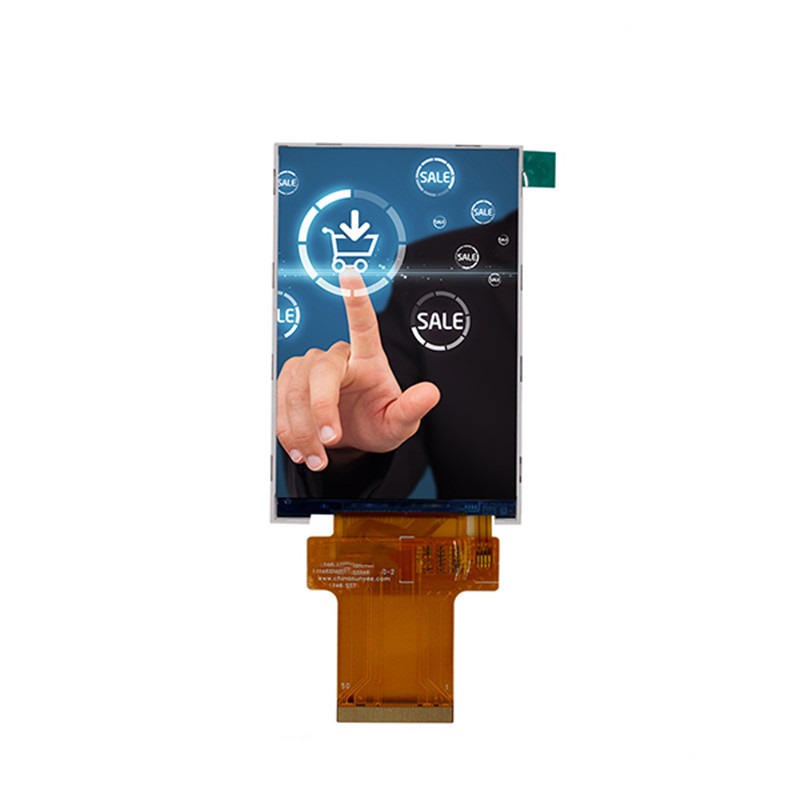

    Description:3.5 Inch TFT LCD Module with Resolution 320X480 Panel Display with High Quality LCD Panel Screen
    Model:PS035SHI-12P-1
    Place of Origin:China
    Brand Name:P&S
    Certification:CE,FCC,ROHS
    Model Number:PS-xx
    Minimum Order Quantity:MOQ for customized PCT 1000pcs
    Packaging Details:Standard export package
    Delivery Time:10-20 working days
    Payment Terms:T/T,westen union
    Supply Ability:600-800Kpcs/month
    Contact:Sales&Remarks

    Detailed Product Description


    3.5 Inch TFT LCD Module with Resolution 320X480 Panel Display with High Quality LCD Panel Screen



    General Specifications


    PS035SHI-12P is a TFT-LCD module.It is composed of a TFT-LCD panel ,driver IC,FPC,a back light unit.The 3.5" display area contains 800*800 pixels and can display up to 262K colors.This product accords with RoHs environmental criterion.


    Item Contents

    LCD Type TFT/Transmissive

    Display Color 65K/262K

    Viewing Direction Full Viewing Angle

    Gray scale inversion direction 12 o'clock

    Operating temperature -20-+70

    Storage temperature -30-+80

    Module Size 54.48*84.71*3.5

    Active Area(W*H) 48.96*73.44

    Number of Dots 320*480

    Driver IC ILI9341

    Power Supply Voltage 2.8 V

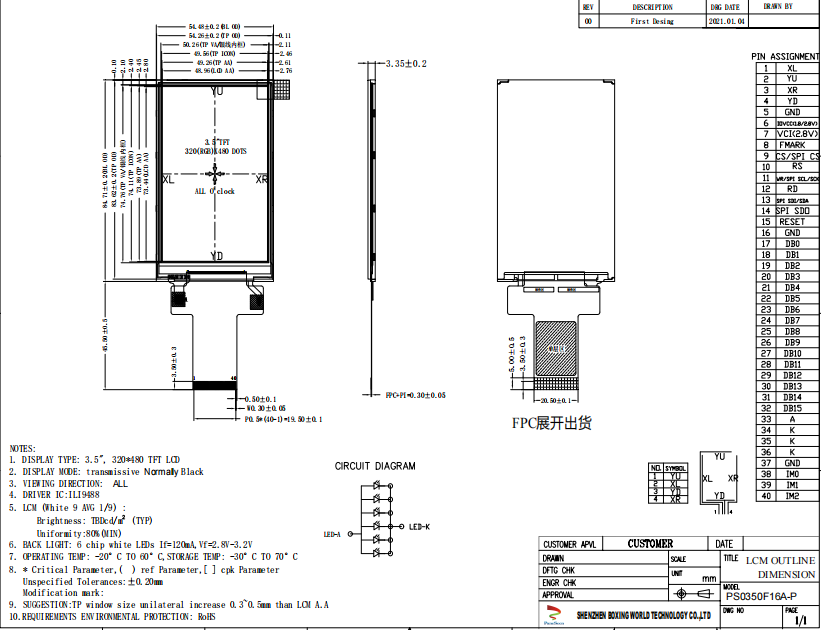

    Outline Dimensions Refer to outline drawing

    Backlight 1*6-LEDs(White)

    Weight g

    Interface RGB



    *Competitive price and short lead-time.


    *ISO9001 and ROSH certificated factory supplied.


    *TFT LCD module, touch panel, PCB with SMT/COB solutions






    4.Quality Control:


    Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!


    We will test goods strictly according to our standard inspection before shipment.

    If exceed this standard, clients can ask for returning and get new.




    5.Packaging and Delivery:


    1). Payment Terms: T/T, Paypal


    2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.


    3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.


    4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.


    5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.


    6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.




    If you have any new inquiry,pls contact with us freely!
