  • Product Details:
    Description:3.5" Inch IPS TFT LCD Display, 320*240 Resolution, Wide Temperature
    Model:PS0350HB-I-3
    Place of Origin:China
    Brand Name:P&S
    Certification:CE,FCC,ROHS
    Model Number:PS-xx
    Minimum Order Quantity:MOQ for customized PCT 1000pcs
    Packaging Details:Standard export package
    Delivery Time:10-20 working days
    Payment Terms:T/T,westen union
    Supply Ability:600-800Kpcs/month
    Contact:Sales&Remarks

    Detailed Product Description


    3.5" inch IPS TFT LCD display, 320*240 resolution, wide temperature


    PS0350HB-I is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.5"contains 240X320RGB pixels and can display up to 16.7M colors.


    General Specification

    Item

    Contents

    Size

    3.5 inch

    Outline Size

    76.84* 63.84* 3 mm

    Active Area

    70.08*52.56 mm

    Resolution

    320(RGB)*240 Pixels

    Viewing direction

    IPS, All

    Brightness

    300 cd/m² (typ)

    Contrast ratio

    1200:1 (typ)

    Interface

    RGB

    Operation temperature

    -30~85°C

    Storage temperature

    -30~85°C

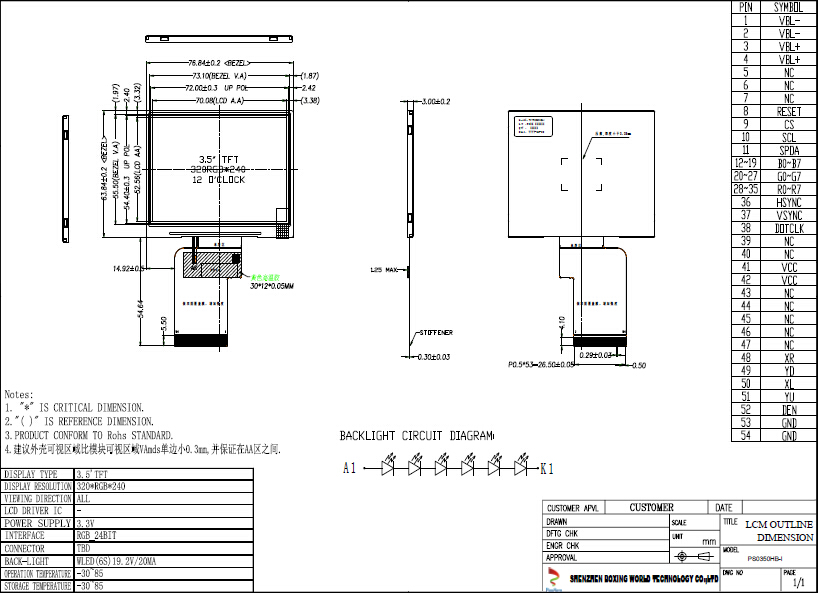

    Drawing
