  • Product Details:
    Description:3.5-inch 320 x480 Pixels TFT LCD Touch Module, MCU/RGB interface for temperature sensor control system
    Model:PS035QHI03CP-2
    Place of Origin:China
    Brand Name:P&S
    Certification:CE,FCC,ROHS
    Model Number:PS-xx
    Minimum Order Quantity:MOQ for customized PCT 1000pcs
    Packaging Details:Standard export package
    Delivery Time:10-20 working days
    Payment Terms:T/T,westen union
    Supply Ability:600-800Kpcs/month
    Contact:Sales&Remarks

    Detailed Product Description

    3.5-inch 320 x480  Pixels  TFT LCD Touch Module, MCU/RGB  interface for temperature sensor control system

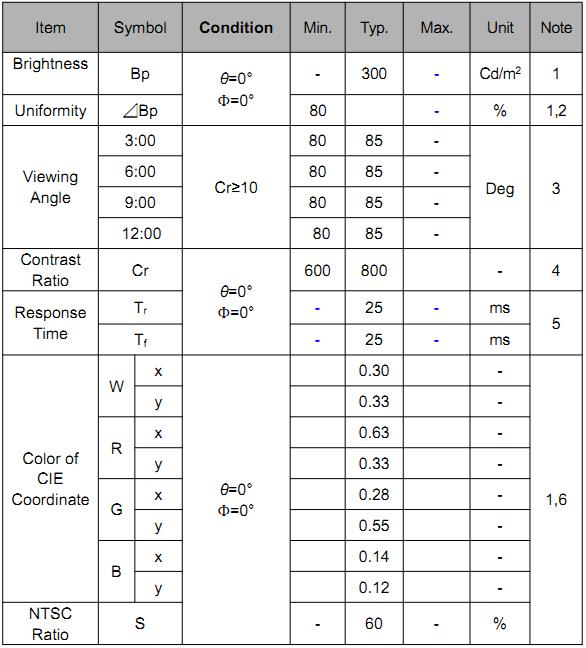

    1.Specifications of 3.5" LCD:

      • Panel type: TFT LCD
      • Panel size: 3.5 inches
      • Resolution: 320x480p
      • Active area: 48.96X73.44 mm
      • Display color: 16.7M
      • Contrast ratio: 800:1
      • Response time: 25 m sec
      • Luminance:300 cd/m2
      • Luminance uniformity: 80%
      • Viewing angle: 85/85/85/85° (type) (CRI: ≥10Ra)
      • Operating temperature (TOPR):-20 to 70°C
      • Storage temperature (TSTG): -30 to 80°C
      • RoHS Directive-compliance
      • Compatible with NTSC/PAL system
      •

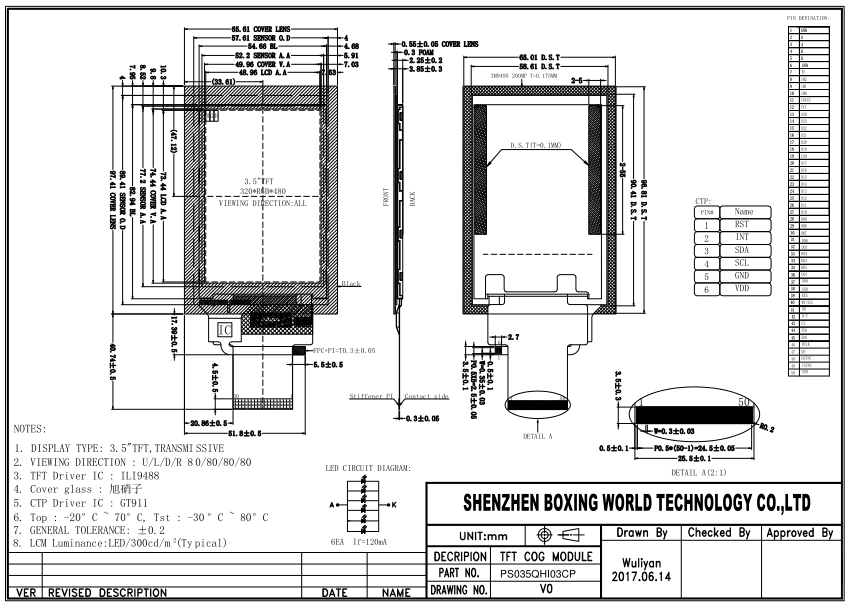

    2.Drawing:


     3. Applications:

    Consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, EPOS/energy control/amusement and gambling machines/white goods/mobile phones and PDAs


    Company Advantage:

    * Small MOQ accepted

    *Competitive price and short lead-time.

    *ISO9001 and ROSH certificated factory supplied.

    *TFT LCD module, touch panel, PCB with SMT/COB solutions
