  • Product Details:
    Description:18.5" 1366x768 TFT LCD Module with 1000 Contrast Ratio for Industrial Monitor
    Model:PS185X52-181-0101-3
    Place of Origin:China
    Brand Name:P&S
    Certification:CE,FCC,ROHS
    Model Number:PS-xx
    Minimum Order Quantity:MOQ for customized PCT 1000pcs
    Packaging Details:Standard export package
    Delivery Time:10-20 working days
    Payment Terms:T/T,westen union
    Supply Ability:600-800Kpcs/month
    Contact:Sales&Remarks

    Detailed Product Description

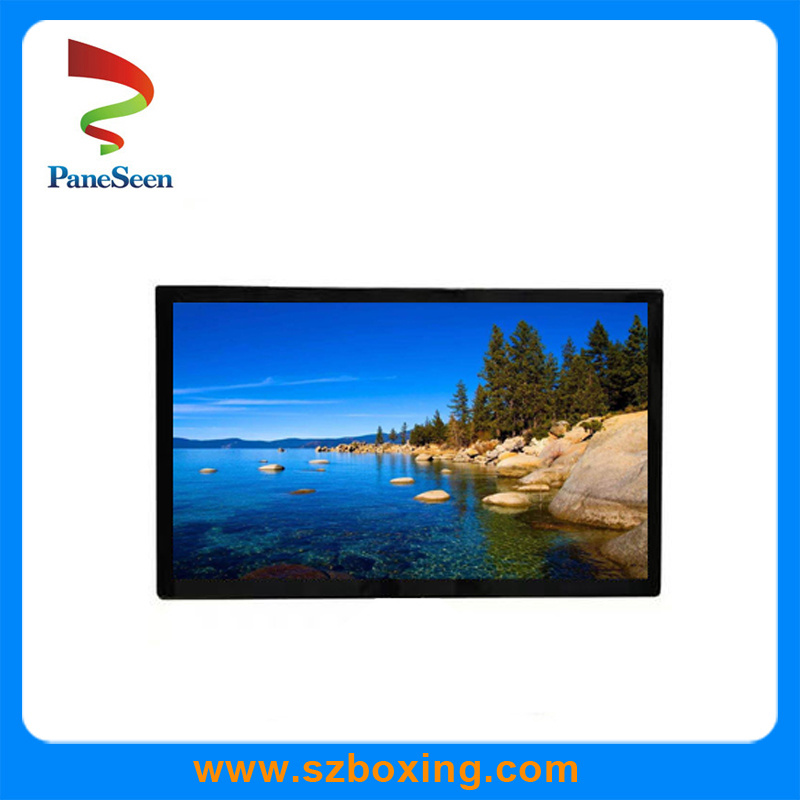

    18.5'' 1366x768 TFT LCD Module with 1000 Contrast Ratio for Industrial Monitor


    This is a color active matrix liquid crystal display(LCD) incorporating amorphous silicon TFT. This model is composed of a TFT-LCD panel, driver ICs, PWB. Graphics and texts can be displayed on a 1366 x RGB x768 dot panel with about 16.7M colors(R/G/B 6 bits + Hi FRC data in each color) by using LVDS(Low Voltage Differential Signaling) to interface,+5V of DC supply voltage.


    Features

    ** High contrast ratio, high aperture structure

    ** High speed response

    ** FHD (1366 x 768 pixels) resolution

    ** White LED Edge slim Backlight (1-side)

    ** DE (Data Enable) only mode

    ** LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)

    ** RoHS, Halogen Free

    ** It is recommended to support in system level

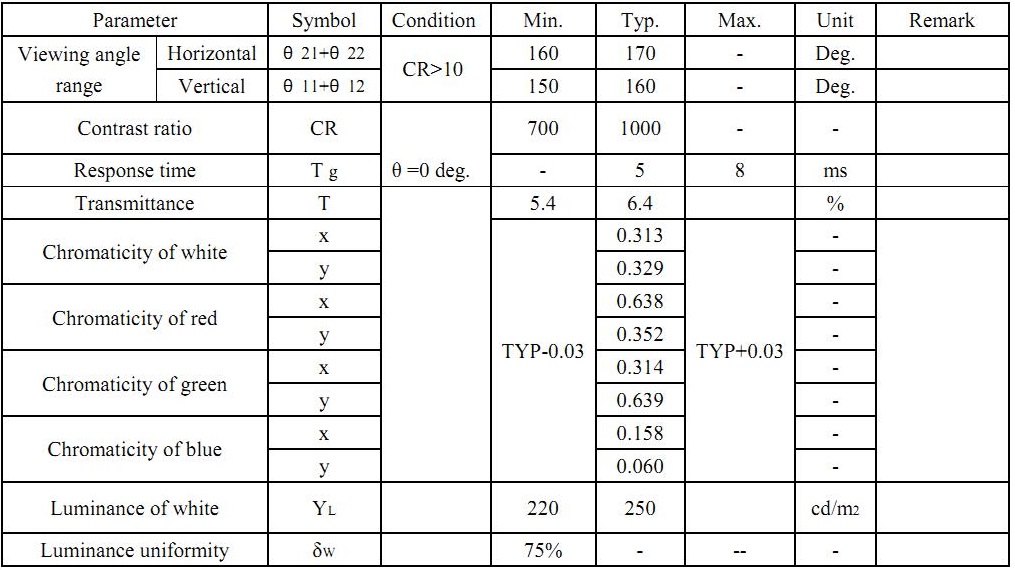

    General Specification

    Item

    Contents

    PN

    PS185X52-181-0101

    Size

    18.5 inch

    Outline Size

    430.4*254.8*10.8 mm

    Active Area

    409.8*230.4 mm

    Resolution

    1366(RGB)*768 Pixels

    Viewing direction

    12:00

    Brightness

    250 cd/m²

    Contrast ratio

    1000:1

    Interface

    LVDS

    Operation temperature

    0~50°C

    Storage temperature

    -20~60°C


    Applications

    ** Workstation &desktop monitors

    ** Display terminals for AV application products

    ** Monitors for industrial machine

    >> If the module is used to other applications besides the above, please contact SEC in advance.

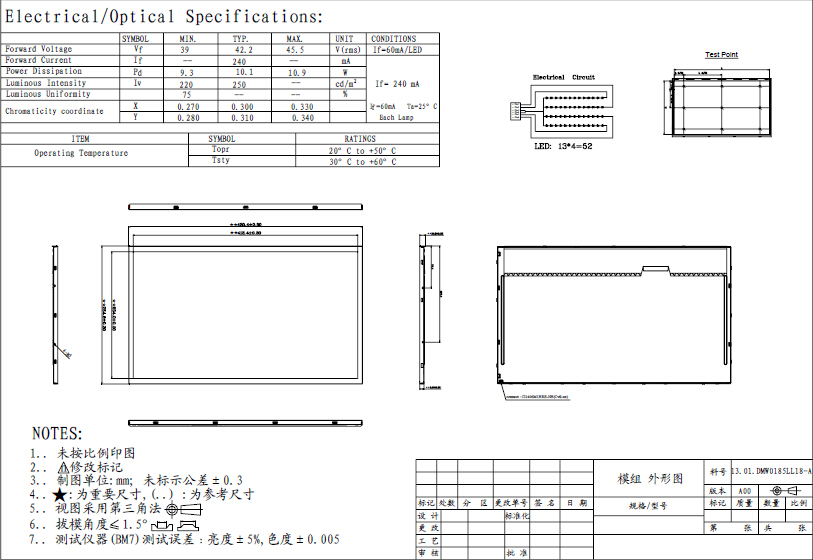

    Drawing
